The Power Cell Series
UNIGRID®’s advanced sodium-ion batteries have no fire hazards and utilize abundant sodium-based materials. UNIGRID®’s Power Cell Series are designed for fast charge, high power, and long cycle life.
Example Applications:
- Stationary ESS (Residential, Commercial, Utility)
- UPS power backup
- Vehicle Starters
- Industrial EVs (Forklift, Bus)
| Features | 3270 | 33140 | 50160118 | 72173207 |
|---|---|---|---|---|
| Capacity | >4.0 Ah | >9.0 Ah | >70 Ah | >210 Ah |
| Voltage Range | 2.0 to 3.4V | 2.0 to 3.4V | 2.0 to 3.4V | 2.0 to 3.4V |
| Maximum Charge/Discharge | 3C/10C | 3C/8C | 2C/4C | 0.5C/0.5C |
| Pulse Charge/Discharge (25°C) | 4C/30C | 4C/20C | 4C/5C | .5C/1C |
| Temperature Range | -40 to 60°C | -40 to 60°C | -40 to 60°C | -40 to 60°C |
| Cycle Life (80% Retention) | 10,000 | 10,000 | 10,000 | 10,000 |
3270
Capacity: >4.0 Ah
Voltage Range: 2.0 to 3.4V
Maximum Charge/Discharge: 3C/10C
Pulse Charge/Discharge (25°C): 4C/30C
Temperature Range: -40 to 60°C
Cycle Life (80% Retention): 10,000
33140
Capacity: >9.0 Ah
Voltage Range: 2.0 to 3.4V
Maximum Charge/Discharge: 1C/8C
Pulse Charge/Discharge (25°C): 4C/20C
Temperature Range: -40 to 60°C
Cycle Life (80% Retention): 10,000
50160118
Capacity: >70 Ah
Voltage Range: 2.0 to 3.4V
Maximum Charge/Discharge: 1C/2C
Pulse Charge/Discharge (25°C): 2C/5C
Temperature Range: -40 to 60°C
Cycle Life (80% Retention): 10,000

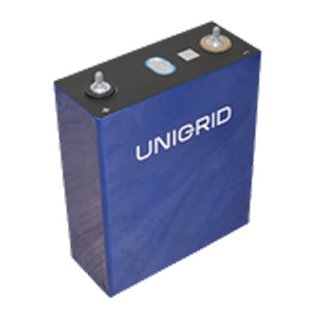

72173207
Capacity: >210 Ah
Voltage Range: 2.0 to 3.4V
Maximum Charge/Discharge: 0.5C/0.5C
Pulse Charge/Discharge (25°C): .5C/1C
Temperature Range: -40 to 60°C
Cycle Life (80% Retention): 10,000
Why Choose UNIGRID® Sodium-Ion Batteries?
Bigger power, small footprint.
Increased energy density with high-capacity alloy anodes, for true breakthrough performance.
Safer. In so many ways.
Designed for safety and intrinsically zero fire risk, for priceless peace of mind.
Sustainable, clean energy.
Abundant sodium-based materials. No lithium, cobalt, nickel, or copper.
Ready for use.
Industry standard battery form factors for drop-in use.

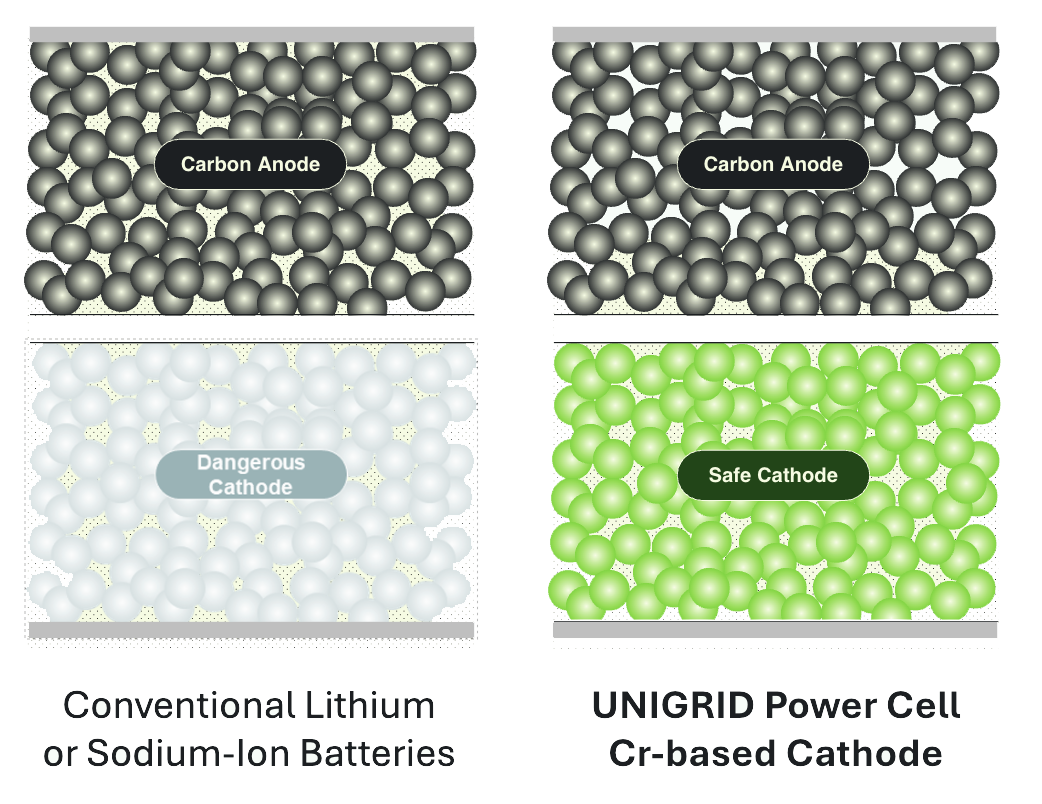

Sodium – Safety
Innovation
UNIGRID®’s core material innovation
eliminates safety hazards in batteries.
Next Level
Battery Performance
- Narrow Full Cell Voltage Range – Delivers stable power output and minimizes efficiency losses.
- High Tap Density – Maximizes volumetric energy (Wh/L) and reduces deployment footprint.
- No Critical Materials – Uses abundant commodity sourced Cr precursors for scalability.
- Ultra Long Life – Absence of degradation mechanisms achieves best-in-class cycle and calendar life.
